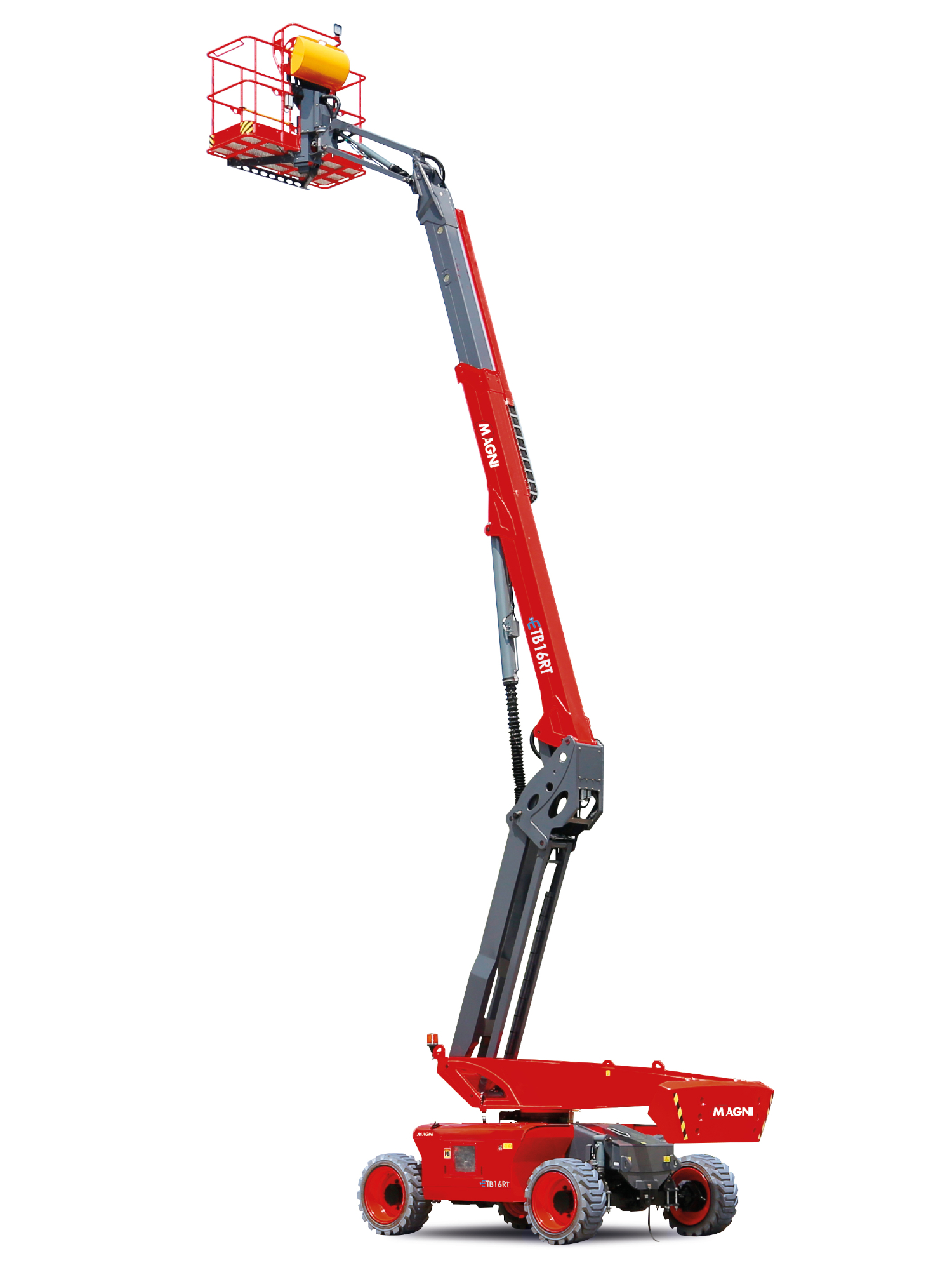

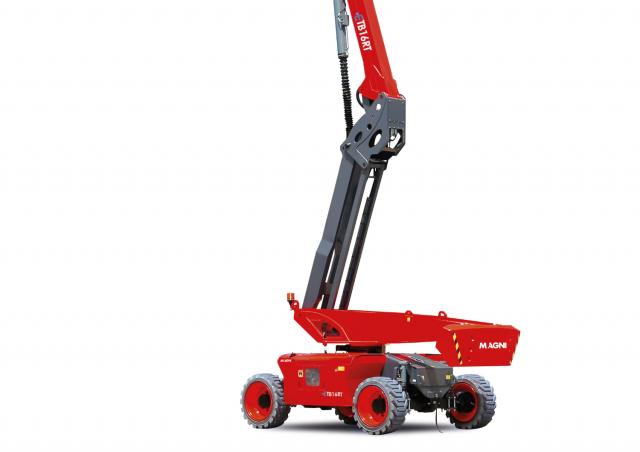

MAGNI ETB16RT Wheeled Telescopic Boom Lifts (2024 - 2024) Specifications

Working height: 16.22m – Platform length: 2.92m – Platform width: 0.79m – Transport length: 5.49m – Transport width: 2.33m – Trans…

Working height: 16.22m – Platform length: 2.92m – Platform width: 0.79m – Transport length: 5.49m – Transport width: 2.33m – Transport height: 2.49m

Search for specs of MAGNI ETB16RT Wheeled Telescopic Boom Lifts (2024 - 2024). Discover details such as work height or boom lifts dimensions below

Technical specs - ETB16RT MAGNI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Working height
16.22 m
Platform length
2.92 m
Platform width
0.79 m
Transport length
5.49 m
Transport width
2.33 m
Transport height
2.49 m
Turning radius outside
4.49 m
Weight
6130 kg
Persons
2
Max. Reach horizontal
9.4 m
Net load
250 kg
Travel speed
6 km/h
max. climbing ability
40 %
Power source
E
Model series
ETB

More technical details, like: brace support length, brace support width, proportional control, rotation, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: brace support length, brace support width, proportional control, rotation, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

IPAF: 3b

Special equipment

Rigid cage boom
No
Articulated cage boom
No
All-wheel steering
No
