LGMG SR4069D
- Working height:
- 13.9 m
- Platform length:
- 2.79 m
- Platform width:
- 1.6 m
- Transport length:
- 3.76 m

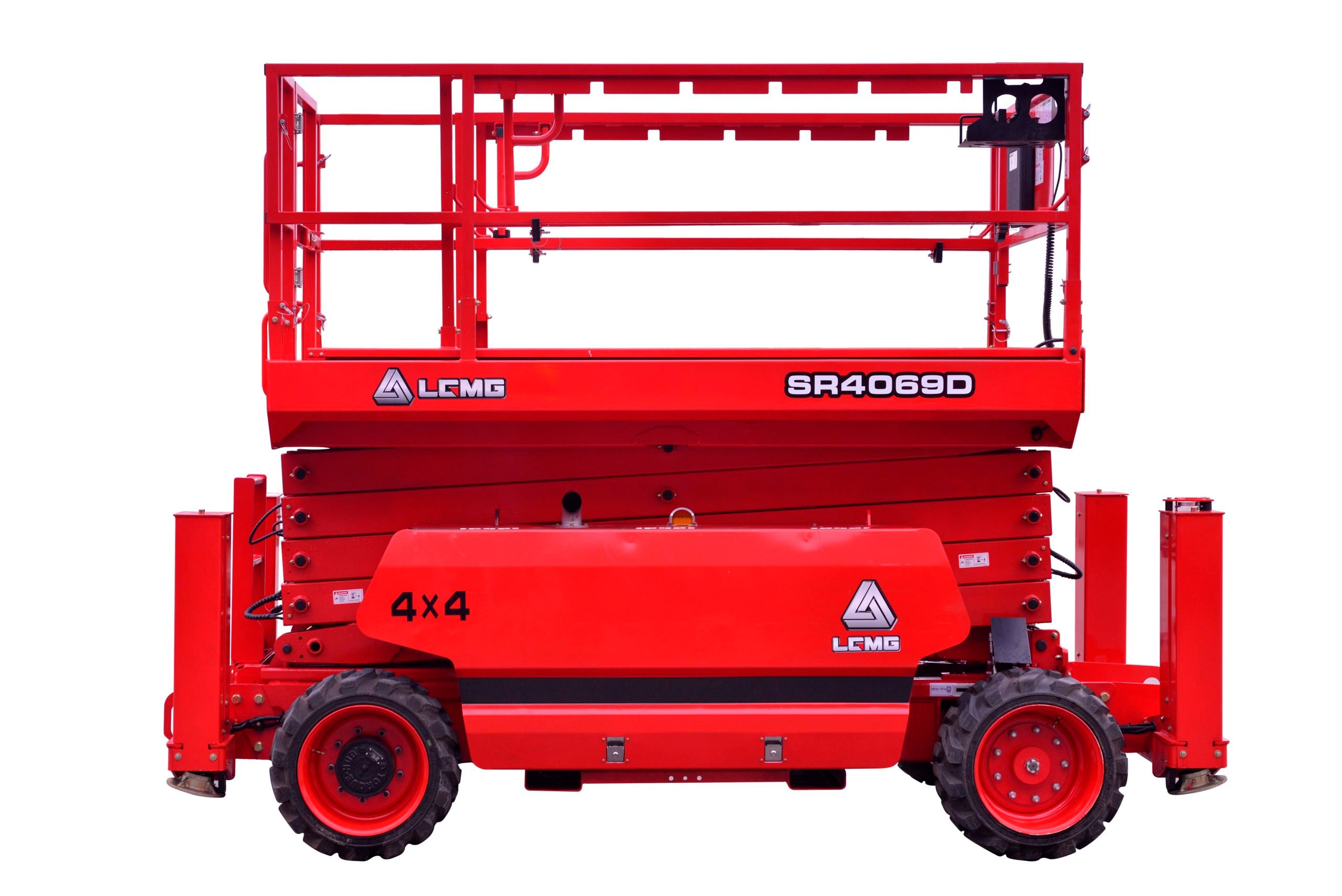

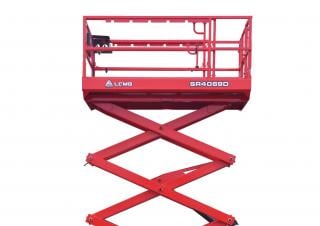

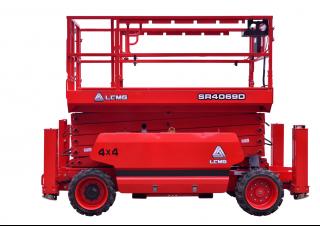

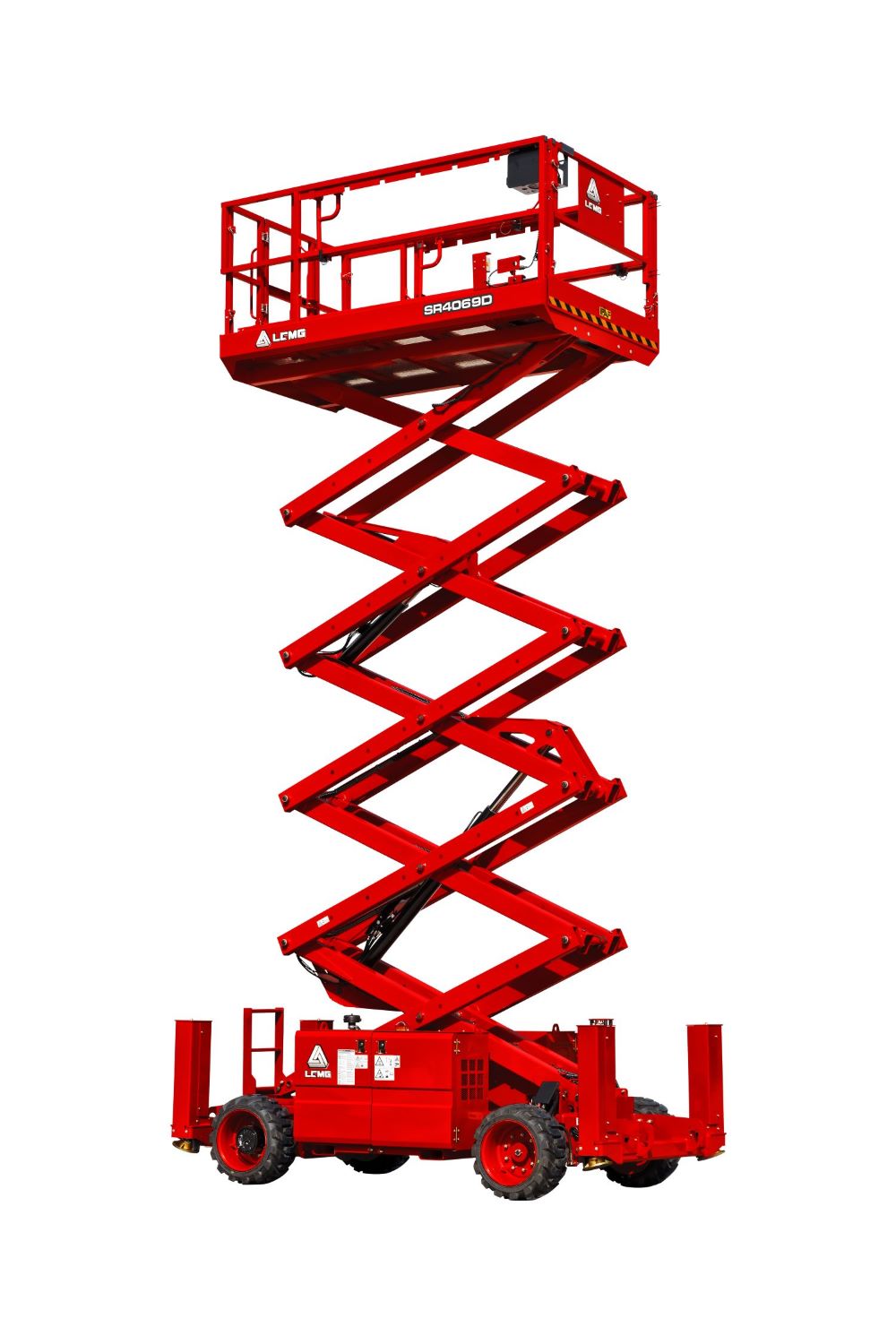

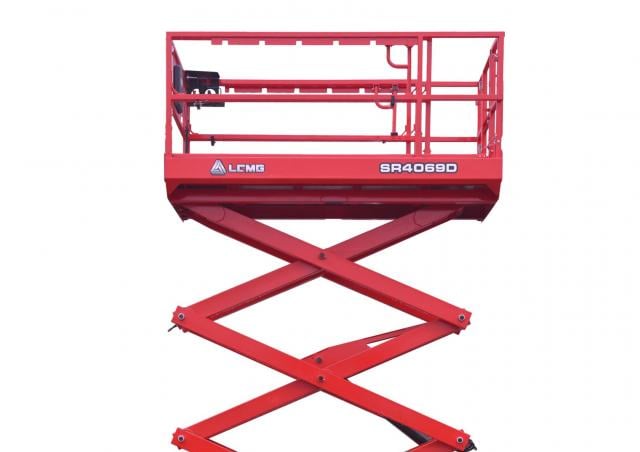

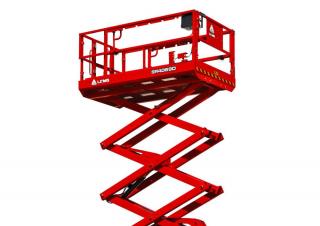

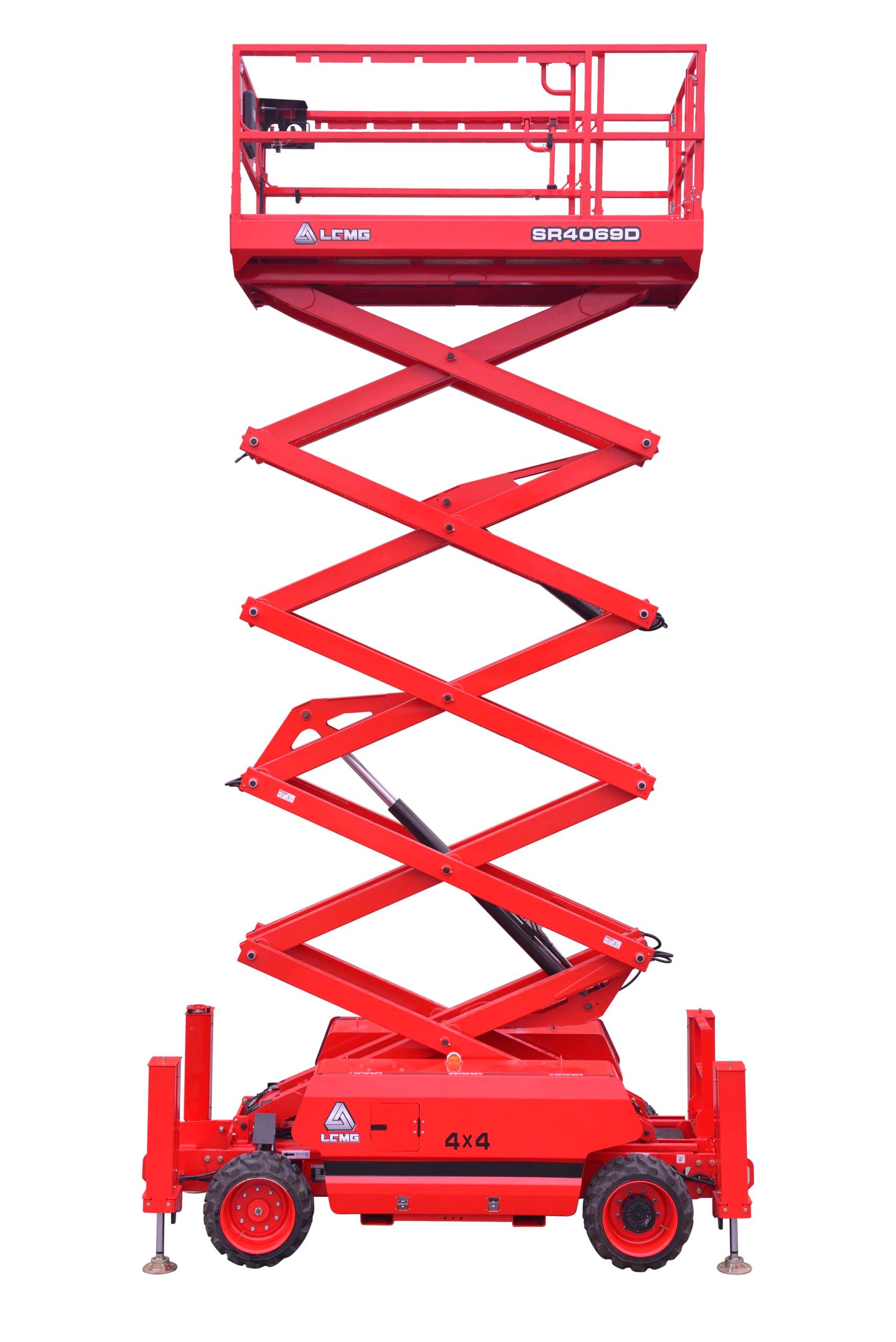

LGMG SR4069D Wheeled scissor lifts (2020 - 2025) Specifications & Dimensions
.jpg)
.jpg)
Technical specs - SR4069D LGMG
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Working height
- 13.9 m
- Platform length
- 2.79 m
- Platform width
- 1.6 m
- Transport length
- 3.76 m
- Transport width
- 1.79 m
- Transport height
- 2.04 m
- Weight
- 5080 kg
- Net load
- 365 kg
- Persons
- 3
- Turning radius outside
- 4.75 m
- max. climbing ability
- 35 %
- Platform extension
- 1.52 m
- Power source
- D
- Model series
- SR
- Engine manuf.
- Kubota
- Engine type
- D1105
- Engine power
- 18.5 kW
- Emission level
- Tier 4 f
More technical details, like: brace support length, brace support width, travel speed, proportional control, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
IPAF: 3a
Special equipment
- All-wheel steering
-
Yes
- Foldable handrail
-
Yes
