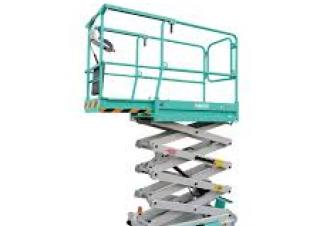

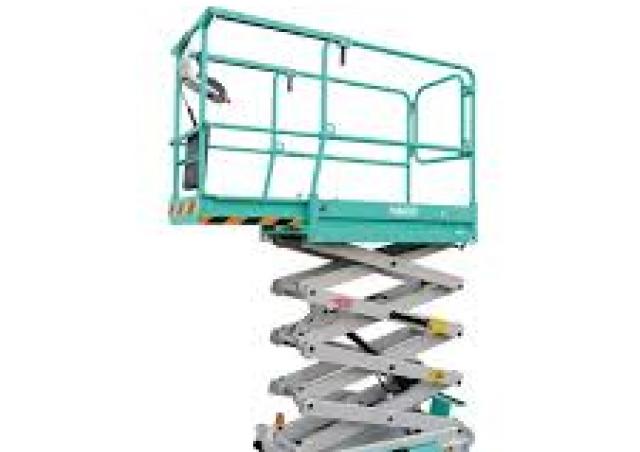

Imer IM 5080 H
- Working height:
- 6.9 m
- Platform length:
- 1.335 m
- Platform width:
- 0.78 m
- Transport length:
- 1.494 m
Imer IM 5080 H Wheeled scissor lifts (2024 - 2025) Specifications
Technical specs - IM 5080 H Imer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Working height
- 6.9 m
- Platform length
- 1.335 m
- Platform width
- 0.78 m
- Transport length
- 1.494 m
- Transport width
- 0.78 m
- Transport height
- 1.99 m
- Weight
- 1065 kg
- Net load
- 230 kg
- Persons
- 2
- Travel speed
- 4 km/h
- Turning radius outside
- 1.55 m
- max. climbing ability
- 25 %
- Platform extension
- 0.66 m
- Power source
- E
- Model series
- IM
More technical details, like: brace support length, brace support width, proportional control, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
IPAF: 3a
Special equipment
- All-wheel steering
-
No
- Foldable handrail
-
Yes
