Genie GS-4390 RT Wheeled scissor lifts (2001 - 2018) Specifications

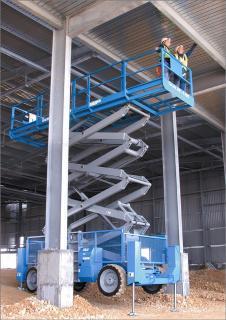

Manufactured by Genie, this is the GS™4390RT wheeled scissor lift. Find and download detailed specs and data sheets for this machi... Read more
Manufactured by Genie, this is the GS™4390RT wheeled scissor lift. Find and download detailed specs and data sheets for this machine here.
The Genie GS™4390RT can be grouped in the biggest machine segment in the wheeled scissor lifts category. The GS™4390RT’s size is 2.29m x 3.94m x 2.25m. 680kg is net load this 6752kg machine can operate. It is able to operate up to 14.75m in working height. The 3.98m by 1.83m platform of this model is designed for 7 persons.
Since 2001, this model has included Foldable handrail. More detailed specifications and machine descriptions can be found in the original Genie GS™4390RT specs data sheet. You can download it for free in English and German on LECTURA Specs.
This model can be acquired for a list price between €98,000 and €124,000. Production of the GS™4390RT continues in 2018. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system. As of 2018 the GS™4390RT is still produced, with a list price between €98,000 and €124,000.
Comparisons of the GS™4390RT Genie with other wheeled scissor lift models reveal that, based on specifications and pricing, the model is similar to the AIRO SF 1390 D, AIRO SF 1380 D 2 iD as well as JLG 4394RT. Genie currently produces 26 other wheeled scissor lifts, which range from 6.4m up to 18m - the most visited on LECTURA Specs are GS3246, GS4047, GS3246. Having been in production from 2001 to 2018, the GS™4390RT wheeled scissor lift ranks in the LECTURA index at #20. Want more detailed specifications? Download the latest Genie GS™4390RT specs data sheet on LECTURA Specs today!
Technical specs - GS-4390 RT Genie
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Working height 14.75 m
- Platform length 3.98 m
- Platform width 1.83 m
- Brace support length 4.88 m
- Brace support width 2.29 m
- Transport length 3.94 m
- Transport width 2.29 m
- Transport height 2.25 m
- Weight 6752 kg
- Net load 680 kg
- Persons 7
- max. climbing ability 50 %
- Platform extension 1,5 m
More technical details, like: average fuel consumption, fuel consumption range (min - max), travel speed , turning radius outside, proportional control, power source, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement...
Show moreIPAF: 3a
Special equipment
- All-wheel steering
- Foldable handrail
