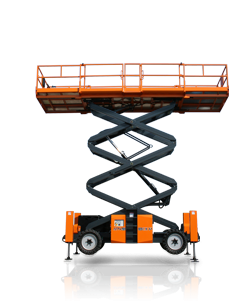

ATN CX 12 Wheeled scissor lifts (2010 - 2014) Specifications

Rate this machine now!

The CX 12 wheeled scissor lift model is manufactured by ATN. Find and download detailed specs and data sheets for this machine her... Read more

The CX 12 wheeled scissor lift model is manufactured by ATN. Find and download detailed specs and data sheets for this machine here.

The CX 12 is categorised in the medium sized machine segment in the wheeled scissor lifts category. The CX 12’s size is 2.3m x 4.86m x 2.78m. 230-1100kg is net load this 6900kg machine can operate. This Wheeled Scissor Lift from ATN can provide a working height of 12m. 2 persons are allowed to stand on the platform at the same time thanks to 4.8m of platform length and 2.22m of platform width.

The ATN CX 12 has been equipped and sold with Foldable handrail and All-wheel steering. Find detailed specifications and machine details in the original ATN CX 12 datasheet. Available in English, French, Italian and Spanish, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

Up until the year 2014, the CX 12 was still being manufactured.

The most commonly viewed ATN models of this type on LECTURA Specs are the, and other wheeled scissor lifts, which currently range from up to are also available. Want more detailed specifications? Download the latest ATN CX 12 specs data sheet on LECTURA Specs today!

Technical specs - CX 12 ATN

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Working height 12 m
  • Platform length 4.8 m
  • Platform width 2.22 m
  • Brace support length 4.86 m
  • Brace support width 2.3 m
  • Transport length 4.86 m
  • Transport width 2.3 m
  • Transport height 2.78 m
  • Weight 6900 kg
  • Net load 1100 kg
  • Persons 2
  • Proportional control j
  • max. climbing ability 45 %
  • Platform extension 2 m
  • Model series CX

More technical details, like: fuel consumption range (min - max), travel speed, turning radius outside, power source, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

Show more

IPAF: 3a

Special equipment

  • All-wheel steering
  • Foldable handrail
