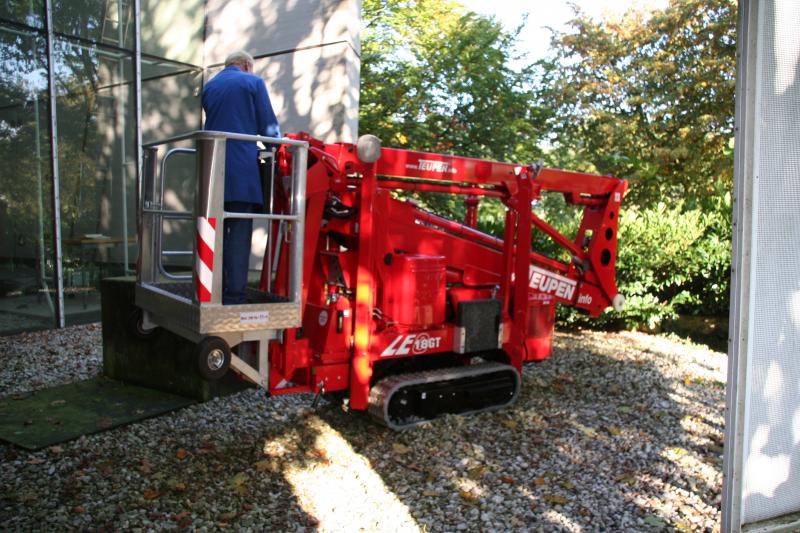

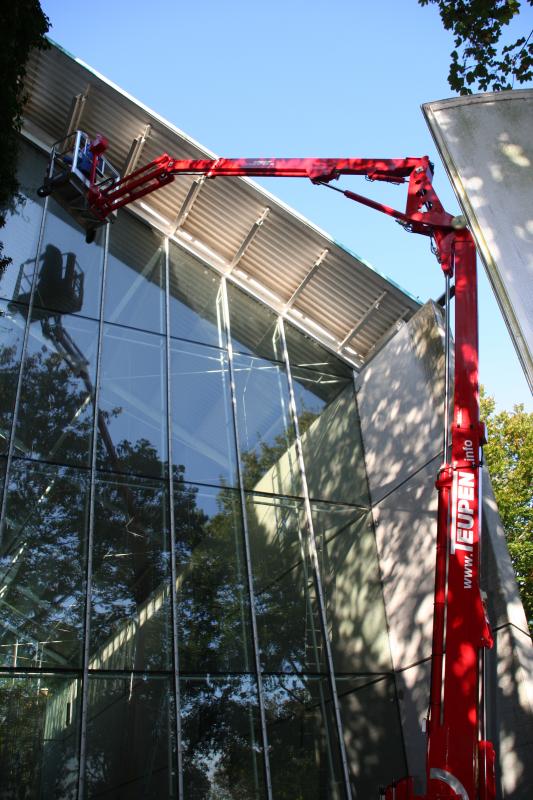

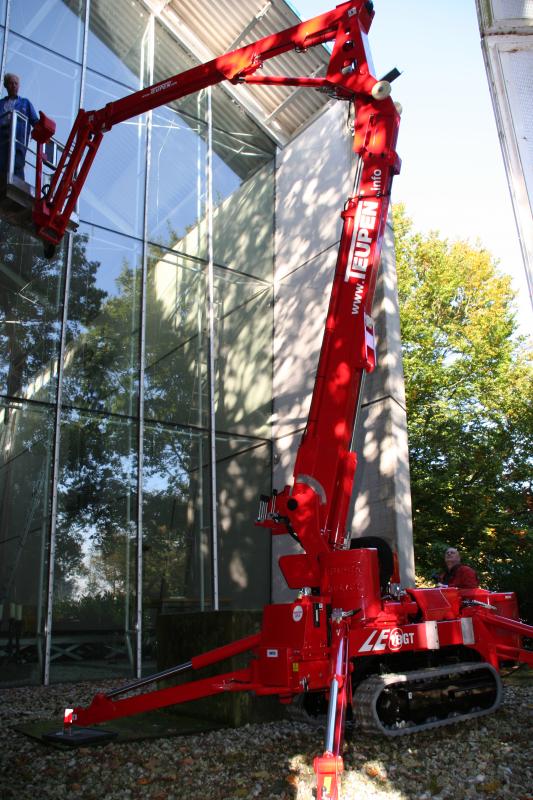

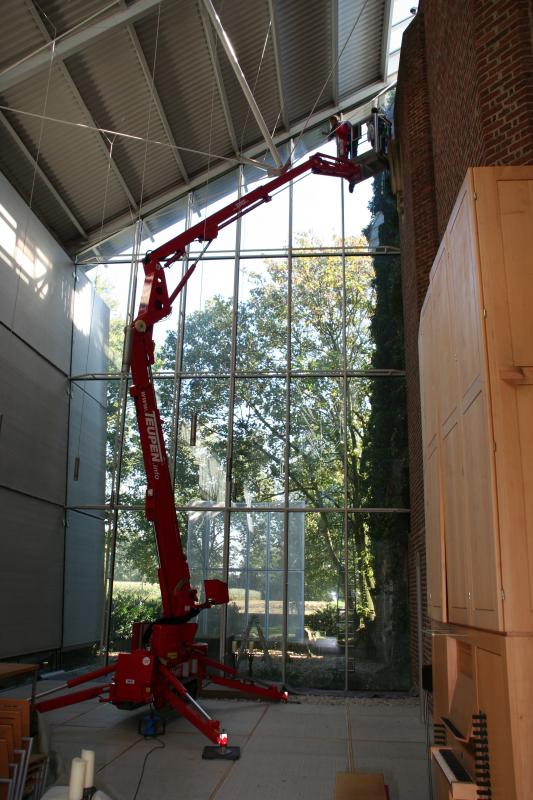

    TEUPEN LEO18GT plus Specifications & Technical Data (2011-2023)

    1,50/10 Rate this machine now!

    Working height: 18.3m – Platform length: 1.4m – Platform width: 0.7m – Brace support length: 3.31m – Brace support width: 3.03m – Transport length: 5.2m

    Technical specs - LEO18GT plus TEUPEN


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Working height 18.3 m
    • Platform length 1.4 m
    • Platform width 0.7 m
    • Brace support length 3.31 m
    • Brace support width 3.03 m
    • Transport length 5.2 m
    • Transport width 0.78 m
    • Transport height 1.99 m
    • Weight 2650 kg
    • Net load 200 kg
    • Max. Reach horizontal 8,5 m
    • Persons 2
    • max. climbing ability 35.5 %
    • Proportional control e/h/j
    • Travel speed 1.8 km/h
    • Track width 200 mm

    More technical details, like: power source, rotation, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    IPAF: 3b

    Special equipment

    • Rigid cage boom
    • Articulated cage boom

    Carbon footprint calculator for Crawler articulated work platforms

    See the ERA equipment CO2 Calculator to find out the CO2 emissions per hour of use of the TEUPEN LEO18GT plus or alternative Crawler articulated work platforms.

    The carbon footprint evaluation can be carried out based on different motor oil consumption scenarios or other variables.

    or visit the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

    service provided by ERA
