LGMG A13JE-LI
- Working height:
- 15 m
- Platform length:
- 1.2 m
- Platform width:
- 0.9 m
- Transport length:
- 6.7 m

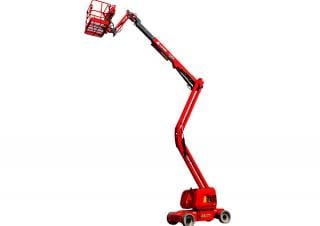

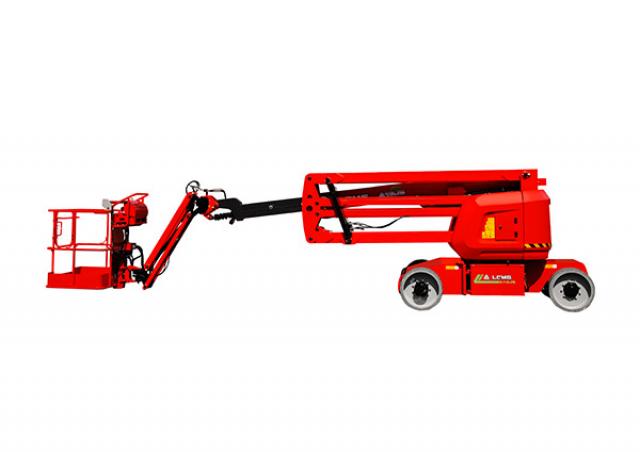

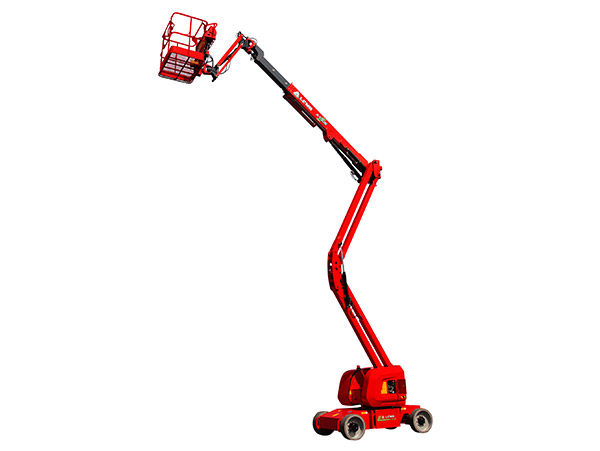

LGMG A13JE-LI Wheeled Articulating Boom Lifts (2025 - 2025) Specifications & Dimensions
.jpg)
.jpg)
Technical specs - A13JE-LI LGMG
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Working height
- 15 m
- Platform length
- 1.2 m
- Platform width
- 0.9 m
- Transport length
- 6.7 m
- Transport width
- 1.5 m
- Transport height
- 2.66 m
- Weight
- 6950 kg
- Net load
- 200 kg
- Max. Reach horizontal
- 7.46 m
- Persons
- 2
- max. climbing ability
- 30 %
- Travel speed
- 5 km/h
- Turning radius outside
- 4.07 m
- Power source
- E
- Rotation
- 355 °
- Model series
- A
- Engine manuf.
- k.A.
- Engine type
- Elektro
More technical details, like: brace support length, brace support width, proportional control, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
IPAF: 3b
Special equipment
- Rigid cage boom
-
No
- Articulated cage boom
-
Yes
- All-wheel steering
-
No
