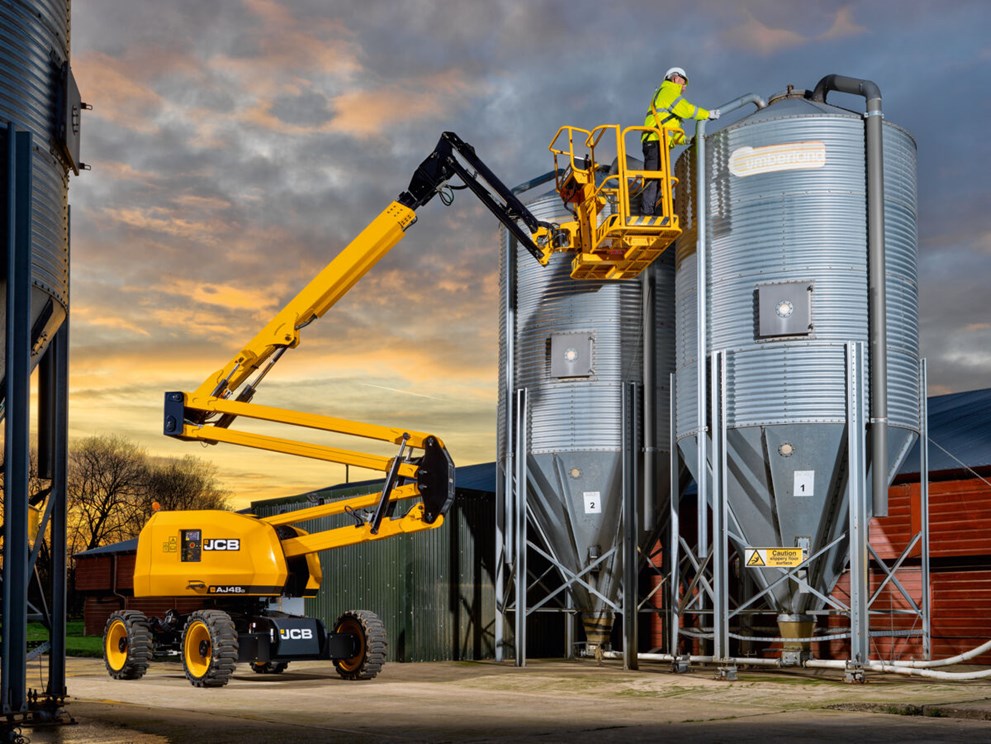

JCB AJ48D Wheeled Articulating Boom Lifts (2023 - 2023) Specifications
Working height: 16.7m – Platform length: 1.83m – Platform width: 0.85m – Transport length: 7.35m – Transport width: 2.26m – Transp... Read more
Working height: 16.7m – Platform length: 1.83m – Platform width: 0.85m – Transport length: 7.35m – Transport width: 2.26m – Transport height: 2.23m
See specifications of JCB AJ48D Wheeled Articulating Boom Lifts (2023 - 2023). Discover technical data - platform length, width and other details below:
Technical specs - AJ48D JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Working height 16.7 m
- Platform length 1.83 m
- Platform width 0.85 m
- Transport length 7.35 m
- Transport width 2.26 m
- Transport height 2.23 m
- Weight 7885 kg
- Net load 250 kg
- Max. Reach horizontal 8.3 m
- Travel speed 6.5 km/h
- Turning radius outside 4.7 m
- Rotation 160 °
- Model series AJ
- Engine manuf. Kohler
- Engine type KDI1903TCR
- Engine power 36 kW
- Emission level Tier 4F
More technical details, like: average fuel consumption, fuel consumption range (min - max), brace support length, brace support width, persons, max. climbing ability, proportional control, power source, dimension lxwxh, displacement, revolutions at max torque, max. torque...
Show moreIPAF: 3b
Special equipment
- Rigid cage boom
- Articulated cage boom
- All-wheel steering
